How magnetic navigation works >>>>>>

The built-in magnetic sensor in the palm ultrasound captures the environmental magnetic field vector and the magnetized needle's induced magnetic field vector. This information is then transmitted to the processing unit for calculating the displacement and angle of the needle, followed by generating a pattern displaying this displacement and angle information overlaid onto the ultrasound image for simultaneous visualization.

Product advantage >>>>>>

Ultrasonic imaging displays the puncture needle superimposed by magnetic field displacement, and the Angle positioning displays the puncture needle to realize more reliable visualization of the puncture needle with multi-directional and cross-verification, which makes the puncture more accurate, improves the success rate of puncture intervention, reduces the difficulty of puncture intervention, and makes the operation easier without relying on the puncture frame.

How to use >>>>>>

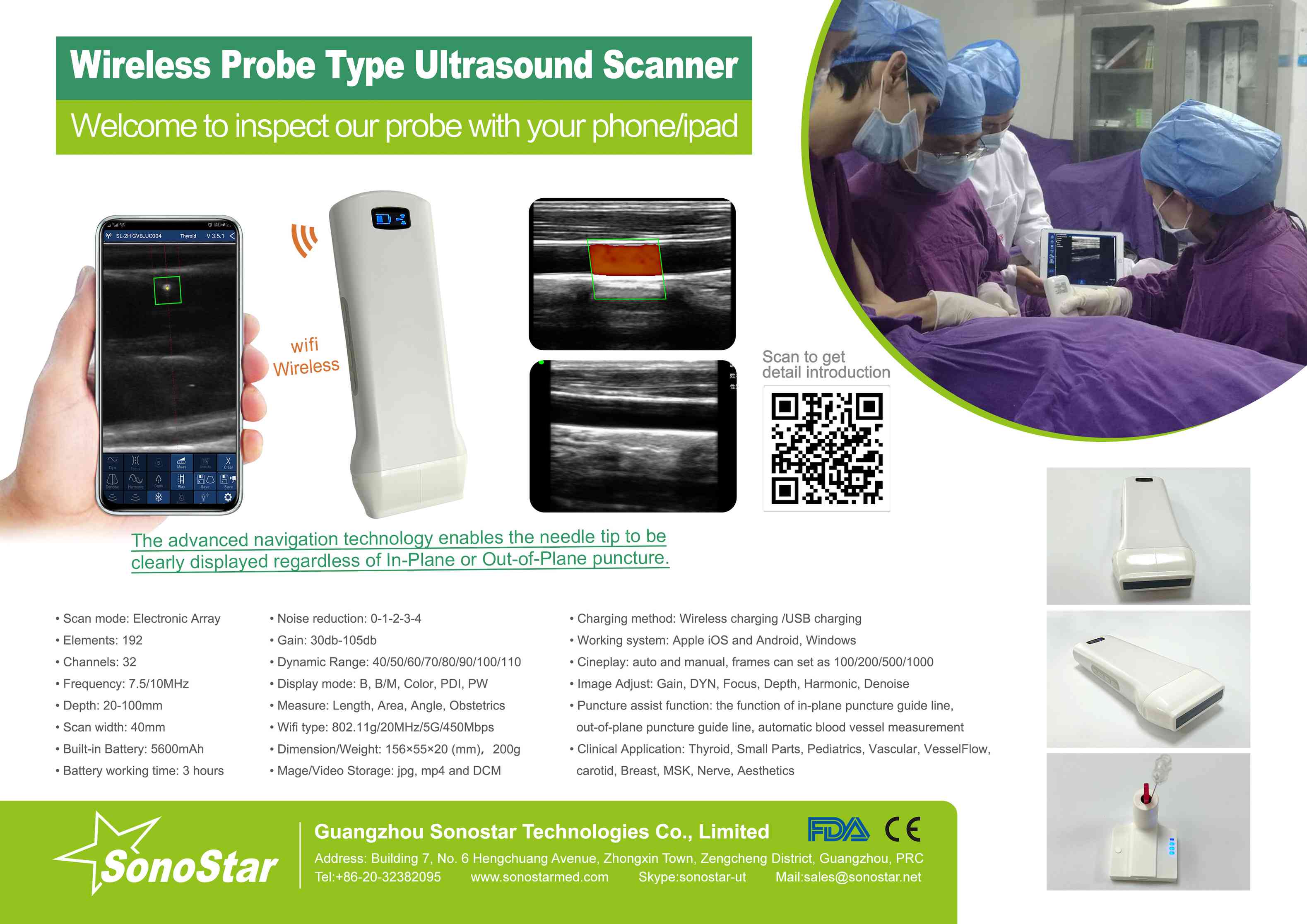

Specifications:

• Scan mode: Electronic Array, Electronic linear array scanning with magnetic navigation function

• Frequency:  linear probe 7.5/10MHz

• Elements: 192 elements

• Scanning Depth: Linear 20-100mm, adjustable

• Field of view: Linear L40

• Screen: Smart phone or tablet screen

• Supporting system: iOS, Android, Windows

• Display mode: B, B/M, Color, PDI, PW

• Image gray scale: 256 level

• Noise reduction: 0-1-2-3-4

• Gain: 30db-105db

• Dynamic Range: 40/50/60/70/80/90/100/110

• Image/Video Storage: Store on mobile phones, Tablet PC

• Measure: distance, area, obstetrics and other

• Power: by built-in lithium battery, 5600mAh

• Battery working time: 5 hours

• Size: 156mm×60mm×20mm

• Net Weight: 200 gram

Configuration:

Standard configuration: Wireless probe device  1 Unit ,Built-in Battery and charge cable 1 Set,User Manual copy

Optional: backpack or aluminum box, probe puncture stand, Android tablet, Apple tablet, wireless power bank, tablet holder, small cart
