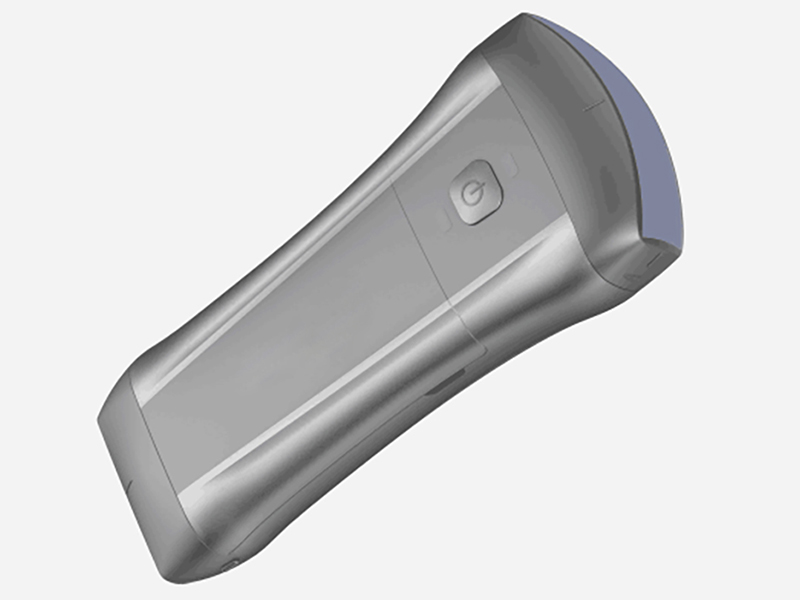

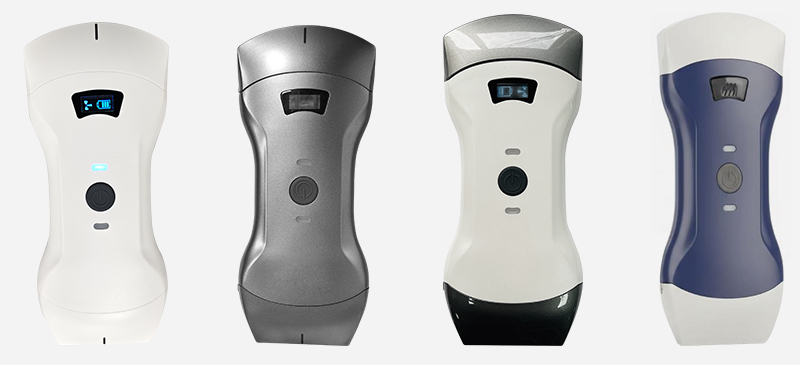

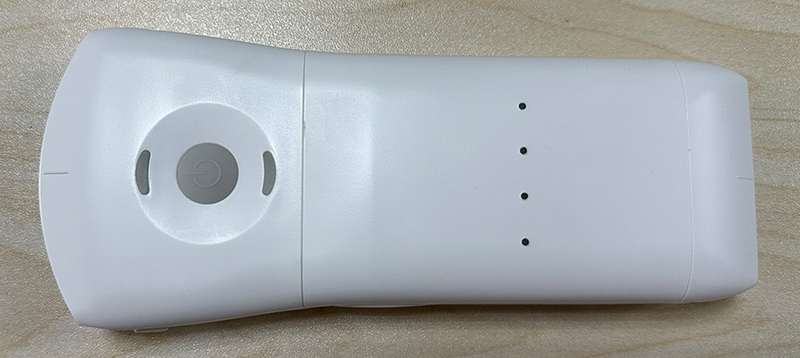

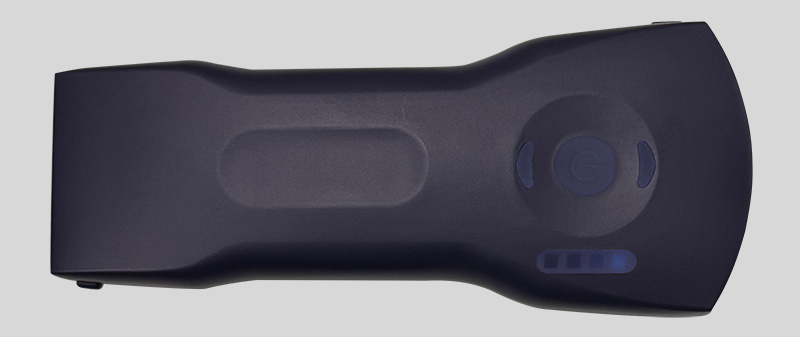

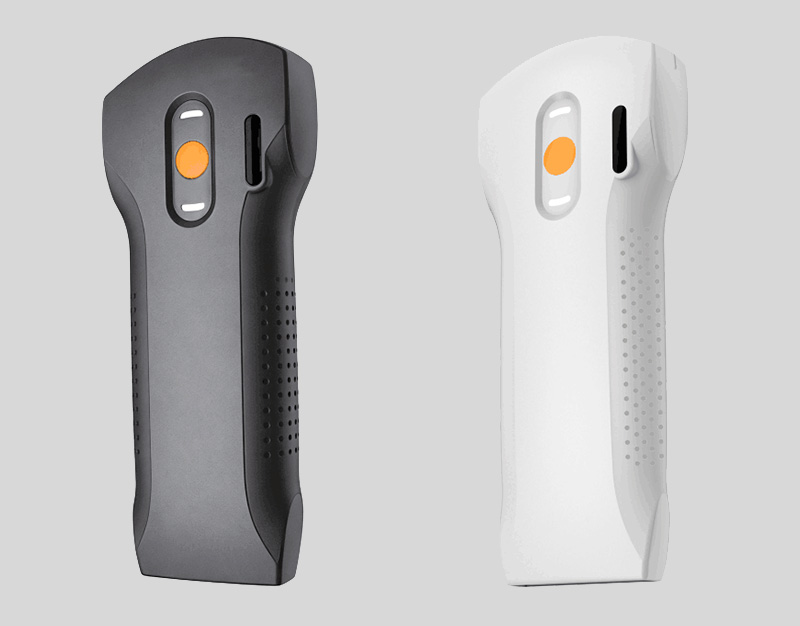

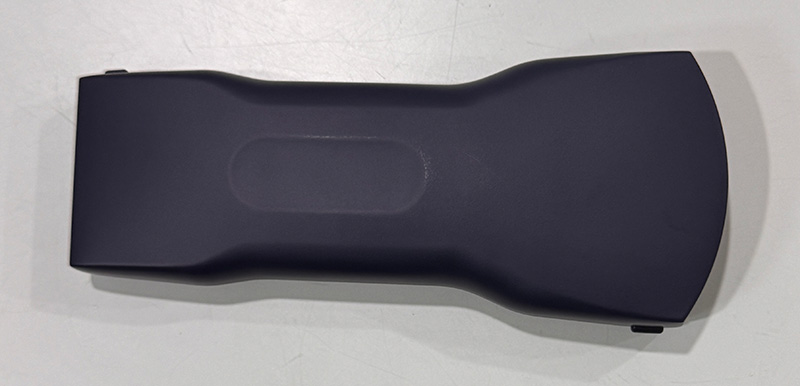

8CPL (Pro2 Series)

KB8CPL (Max2 Series, replaceable battery)    Can customized color on shell and button

KC8CPL  (Max3 Series, replaceable battery)

DA8CPL (Pro Series, with mono crystal transducer)    Can customized color on shell and button

• Scan mode: Electronic Array, Electronic Convex & Linear array scanning
• Frequency:  Convex/Phasedarray probe 3.2/5.0MHz, Linear probe 7.5/10MHz, phasedarray probe 3.2/5.0MHz
• Elements: 192 elements
• Channels: 64 channels
• Scanning Depth: Convex 90-305mm, Linear 20-100mm, phasedarray probe 90-200mm, adjustable
• Scan angle and width: convex 60°, phasedarray 80°,  linear width 40mm
• Screen: iOS/Android/Windows screen

• Supporting system: iOS, Android, Windows
• Display mode: B, B/M, Color, PDI, PW
• Image Adjustment: gain, focus, reverse pulse harmonics, noise reduction
• Puncture Auxiliary Function: In-Plane puncture guide, Out-Plane puncture guide, automatic vascular measurement function
• Image gray scale: 256 level
• Noise reduction: 0-1-2-3-4
• Gain: 30db-105db
• Dynamic Range: 40/50/60/70/80/90/100/110
• Image/Video Storage: jpg, MP4, png, DCM, store on mobile phones, Tablet PC
• Measure: distance, area, obstetrics and other
• Power: by built-in lithium battery, 2800mAh, wireless charging can extend the working time indefinitely
• Playback : manual and automatic, playback frames to be 100/200/500/1000
• WiFi Type : 802.11n/2.4G/5G dual-band 450Mbps
• Battery working time: 2 hours (KA8CPL and KB8CPL standard configuration with 2 battery, per battery can work 2 hours)
• Size: 156mm×60mm×20mm
• Net Weight: 230 gram

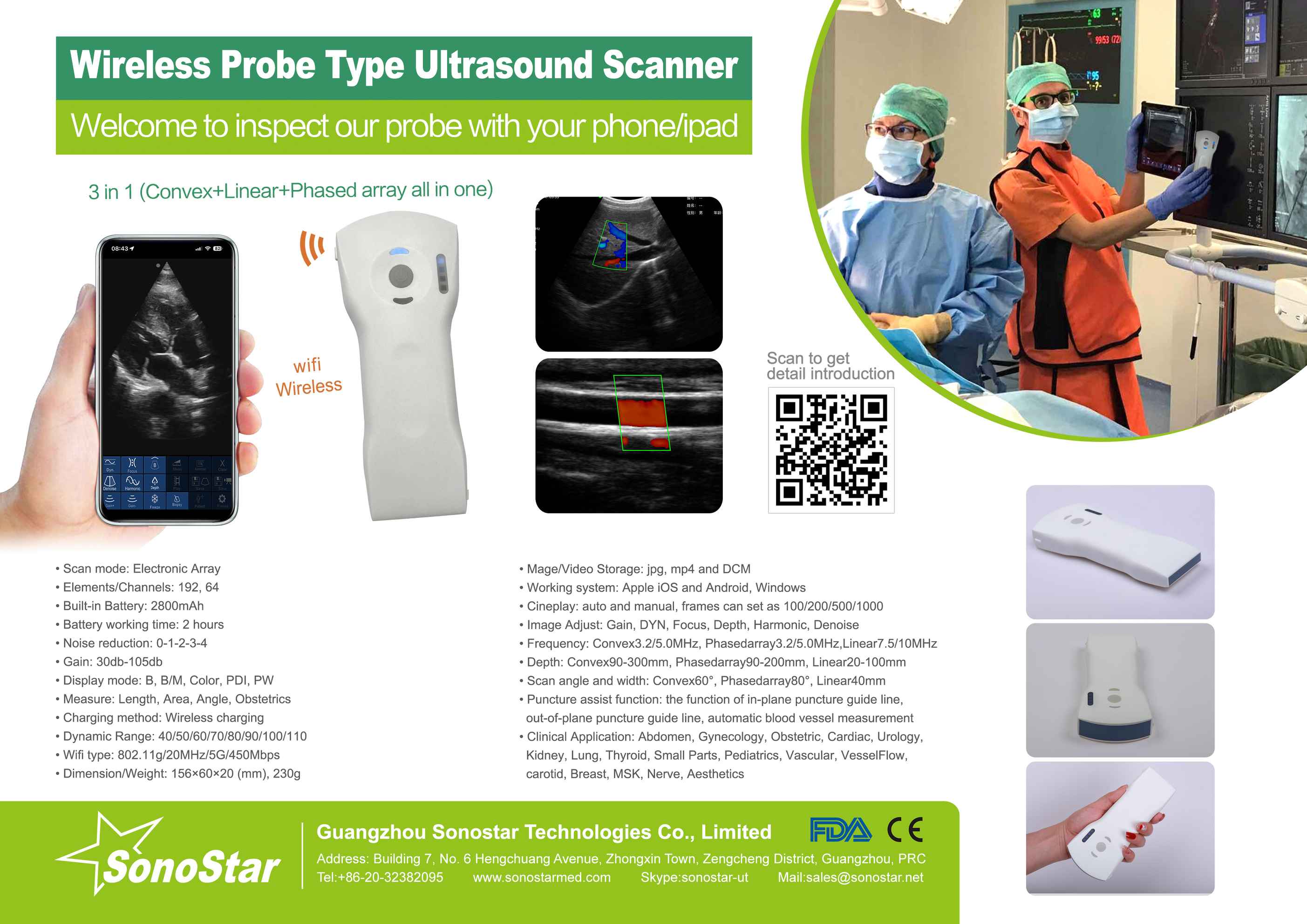

>>Catalog Download
