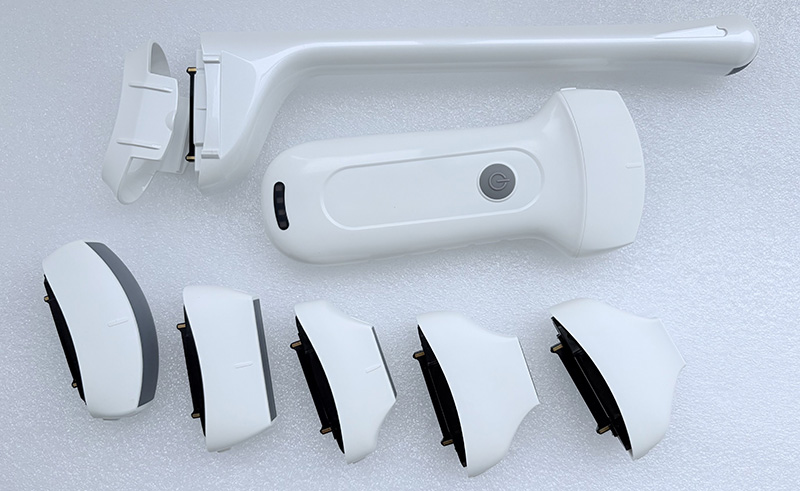

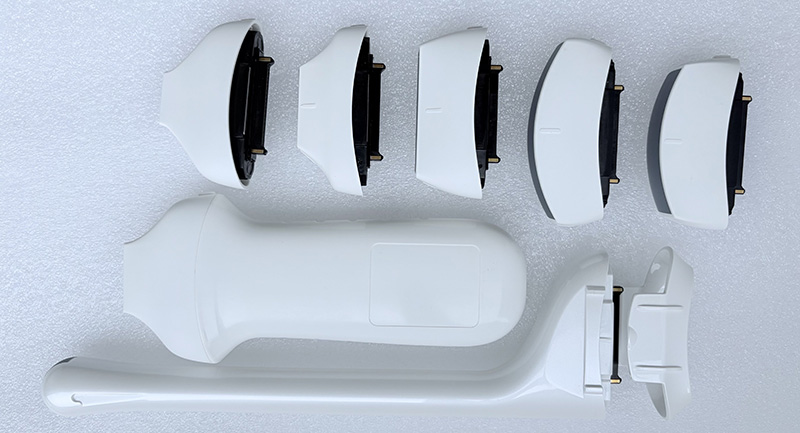

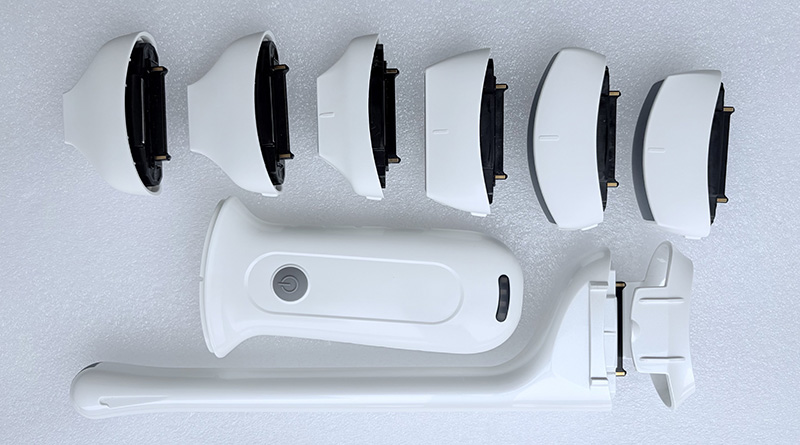

The transducer and the handle are precisely and magnetically connected

• Scan mode: Electronic Array, Electronic Convex & Linear array scanning

• Frequency:  Convex/Phasedarray 3.2/5.0MHz or 3.2/4.0MHz,  Linear probe 7.5/10MHz or 10/13.2MHz , Transvaginal 6.6/8.0

• Scanning Depth: Convex 90/160/220/305mm, Linear 20/40/60/100mm, Transvaginal  20/40/60/100, adjustable

• Field of view: Convex R60, Phasedarray R80, Linear L40

• Elements: 192 elements

• Channels: 64 channels

• Screen: iOS/Android/Windows screen

• Supporting system: iOS, Android, Windows

• Display mode: B, B/M, Color, PDI, PW

Linear array COLOR mode
Deflection angle -12 -7 0 7 12 degrees
PRF ≥ 4 groups
Wall filter 0 - 15
Color gain 0 - 10

Linear array PW mode
Sampling volume: 1, 2, 5 mm
Baseline: 0 - 500 cm/s
PRF ≥ 4 groups
Color gain: 0 - 100
Correction angle: -85 - 85 degrees

Convex Array COLOR Mode
Deflection Angle: Not Available
PRF: ≥ 4 groups
Wall Filter: 0 - 15
Color Gain: 0 - 10

Convex array PW mode
Sampling volume: 1, 2, 5 mm
Baseline: 0 - 800 cm/s
PRF: ≥ 4 groups
Correction angle: -85 to 85 degrees

Cardiac COLOR mode
Deflection angle: Not available
PRF ≥ 4 groups
Wall filter: 0 - 15
Color gain: 0 - 100

Cardiac PW mode
Sampling volume: 1, 2, 5 mm
Baseline: 0 - 600 cm/s
PRF ≥ 4 groups, Note: For USB phased array probe, PRF is 2 - 20K ≥ 8 groups
Correction angle: -85 - 85 degrees

• Image Adjustment: gain, focus, reverse pulse harmonics, noise reduction

• Puncture Auxiliary Function: In-Plane puncture guide, Out-Plane puncture guide, automatic vascular measurement function

• Measure: Thyroid, small organs, pediatrics, blood vessels, carotid artery, breast, musculoskeletal, blood flow, nerves, abdomen,

  gynecology, obstetrics, heart, urinary system, kidneys, lungs

• Power: by built-in lithium battery, 2800mAh, wireless charging can extend the working time indefinitely

• Playback : manual and automatic, playback frames to be 100/200/500/1000

• Image gray scale: 256 level

• Image frame rate: 18 frames/second

• Dynamic Range: 40/50/60/70/80/90/100/110

• Image/Video Storage: jpg, png mp4 and DCM

• WiFi Type : 802.11n/2.4G/5G dual-band 450Mbps

• Battery working time: 2 hours

• Size: 156mm×60mm×20mm

• Net Weight: 200 gram

>>Catalog Download
