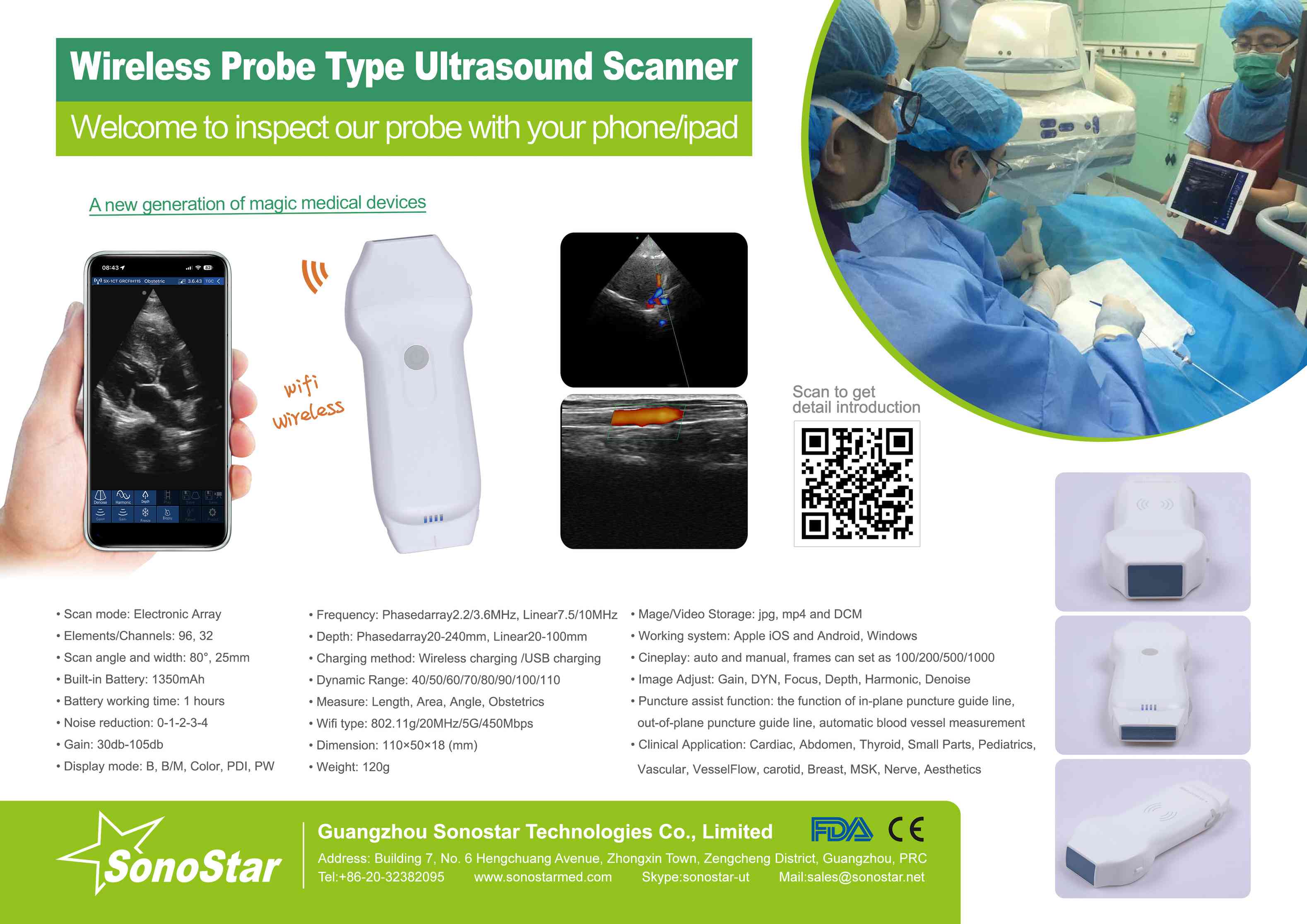

• Frequency:  Phasedarray probe 2.2/3.6MHz, linear probe 7.5/10MHz

• Scanning Depth: Phasedarray probe 90-190mm, Linear 20-100mm, adjustable

• Field of view: Phasedarray probe 80mm，Linear 25mm

• Screen: Smart phone or tablet screen

• Supporting system: iOS, Android, Windows

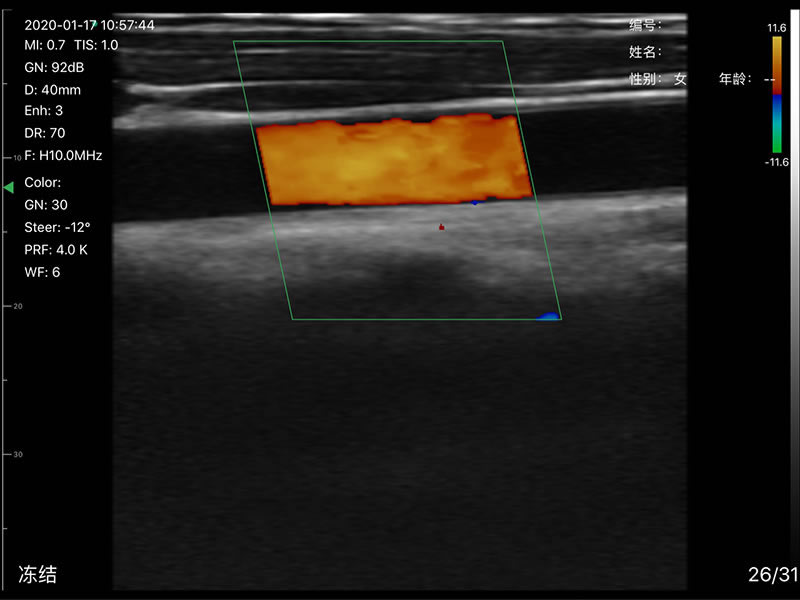

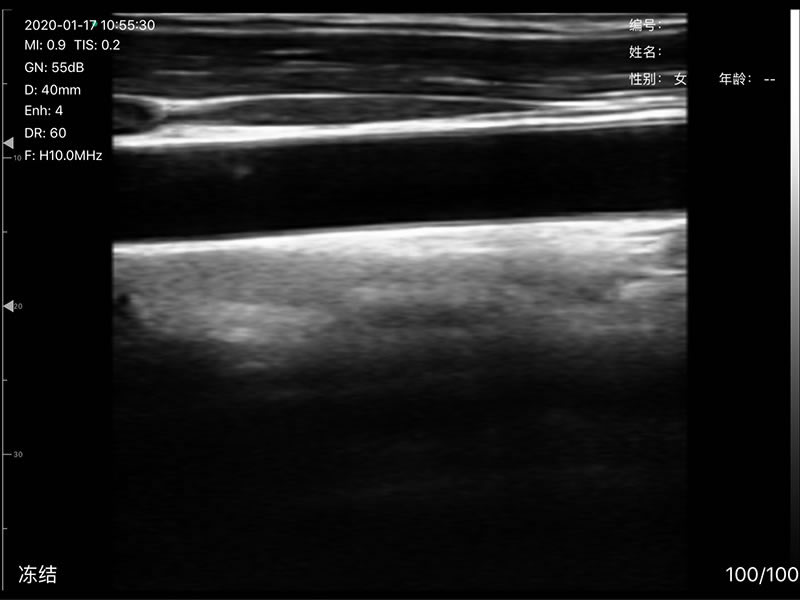

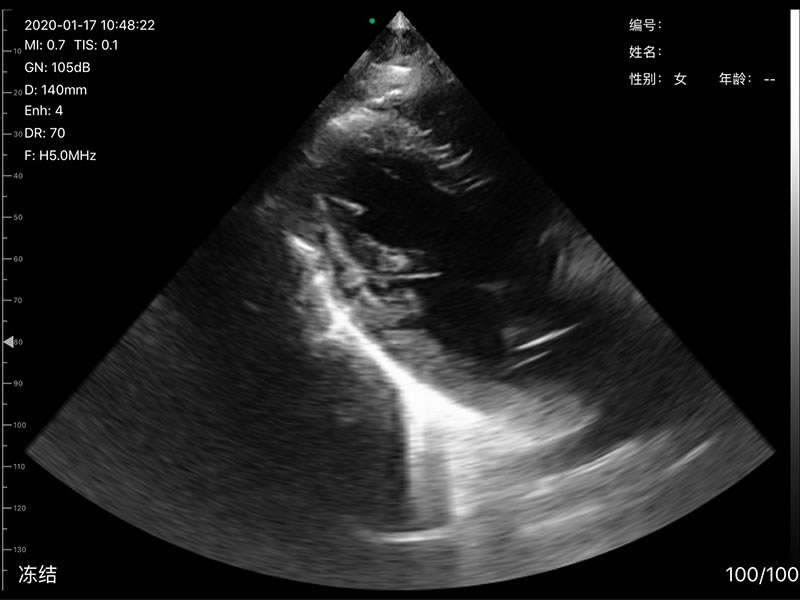

• Display mode: B, B/M, Color, PDI, PW

•  Frame rate: 18f/s

•  Gain: 30db-105db

•  Dynamic Range: 40/50/60/70/80/90/100/110

•  Noise reduction: 0-1-2-3-4

•  Image gray scale: 256 level

•  Image/Video Storage: Store on mobile phones, Tablet PC

•  Measure: distance, area, obstetrics and other;

•  Power: by built-in lithium battery, 2800mAh

•  Battery working time: 1.5hours

•  Size/Net Weight: 132mm×55mm×20mm, 150g
