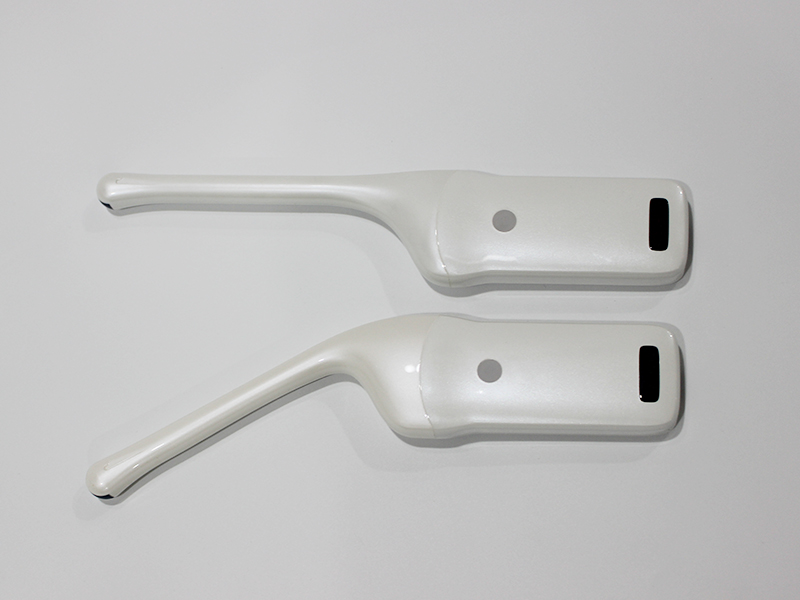

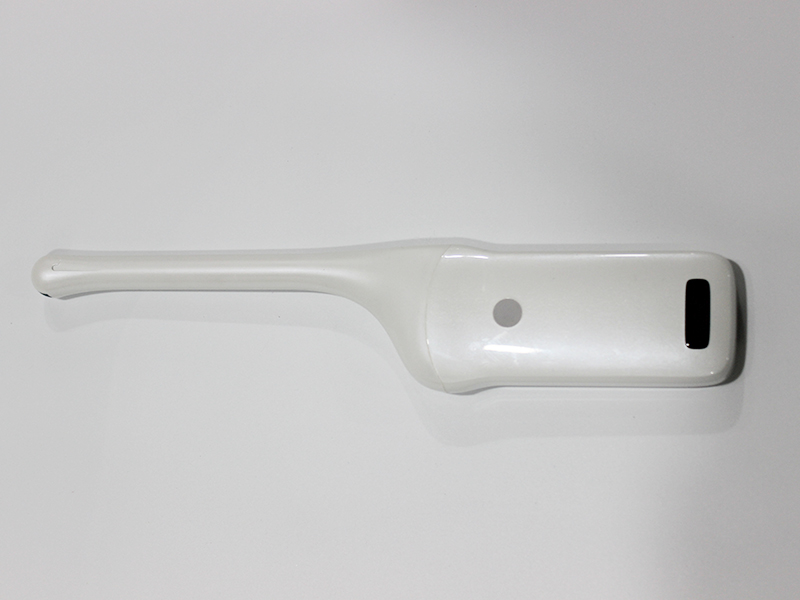

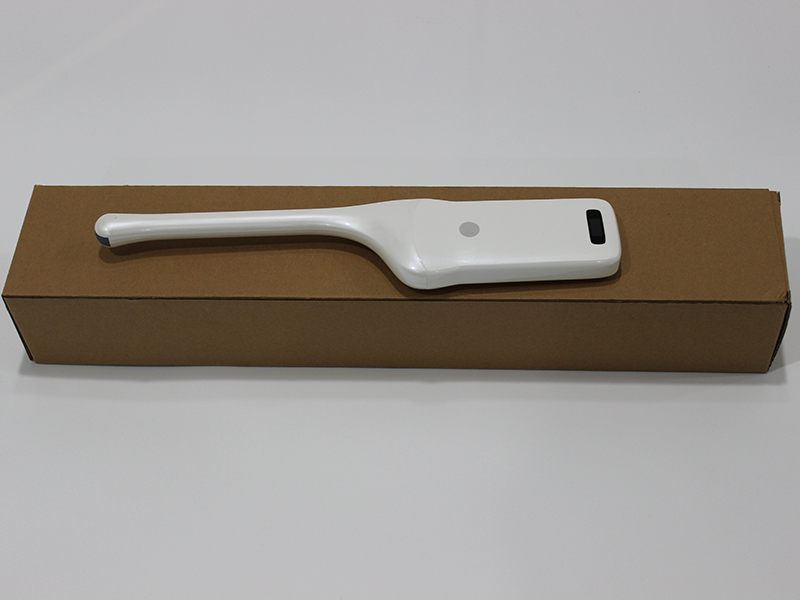

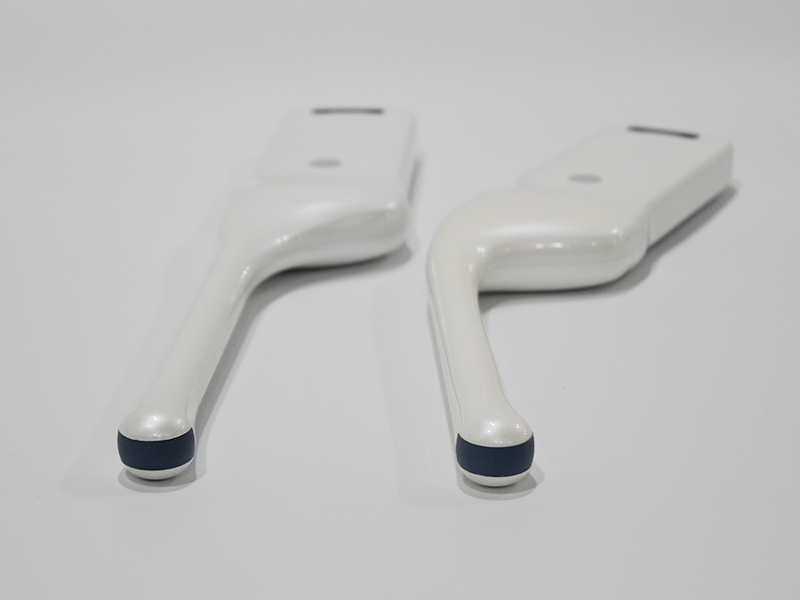

5T transvaginal palm doppler ultrasound scanner
[pics:title]
[pics:title]
[pics:title]
[pics:title]
5T transvaginal palm doppler ultrasound scanner
[pics:title]
[pics:title]
[pics:title]
[pics:title]

5T transvaginal palm doppler ultrasound scanner

SonoStarMed is a professional medical device company specializing in the R&D, manufacturing, and sales of ultrasound equipment. Our flagship probe-based handheld smart ultrasound imaging system miniaturizes traditional diagnostic scanners to the size of a smartphone and a weight of just 200 grams. It seamlessly transmits images wirelessly to various smartphones, tablets, and computers for highly convenient operation. Our comprehensive product lineup includes handheld ultrasound and color Doppler systems, mini and pocket B-scans, portable and cart-based color Doppler units, ophthalmic ultrasound scanners, wireless B-scans and color Doppler systems, compact ultrasound devices, digital stethoscopes, probe-based B-scans, ultrasound diagnostic systems, and bladder scanners. As a dedicated manufacturer, we also provide customized B-scan and color Doppler solutions. Recently, we launched a groundbreaking wearable B-scan weighing only 45 grams and sized like a matchbox, which has once again sent shockwaves through the entire industry.
Inquire →

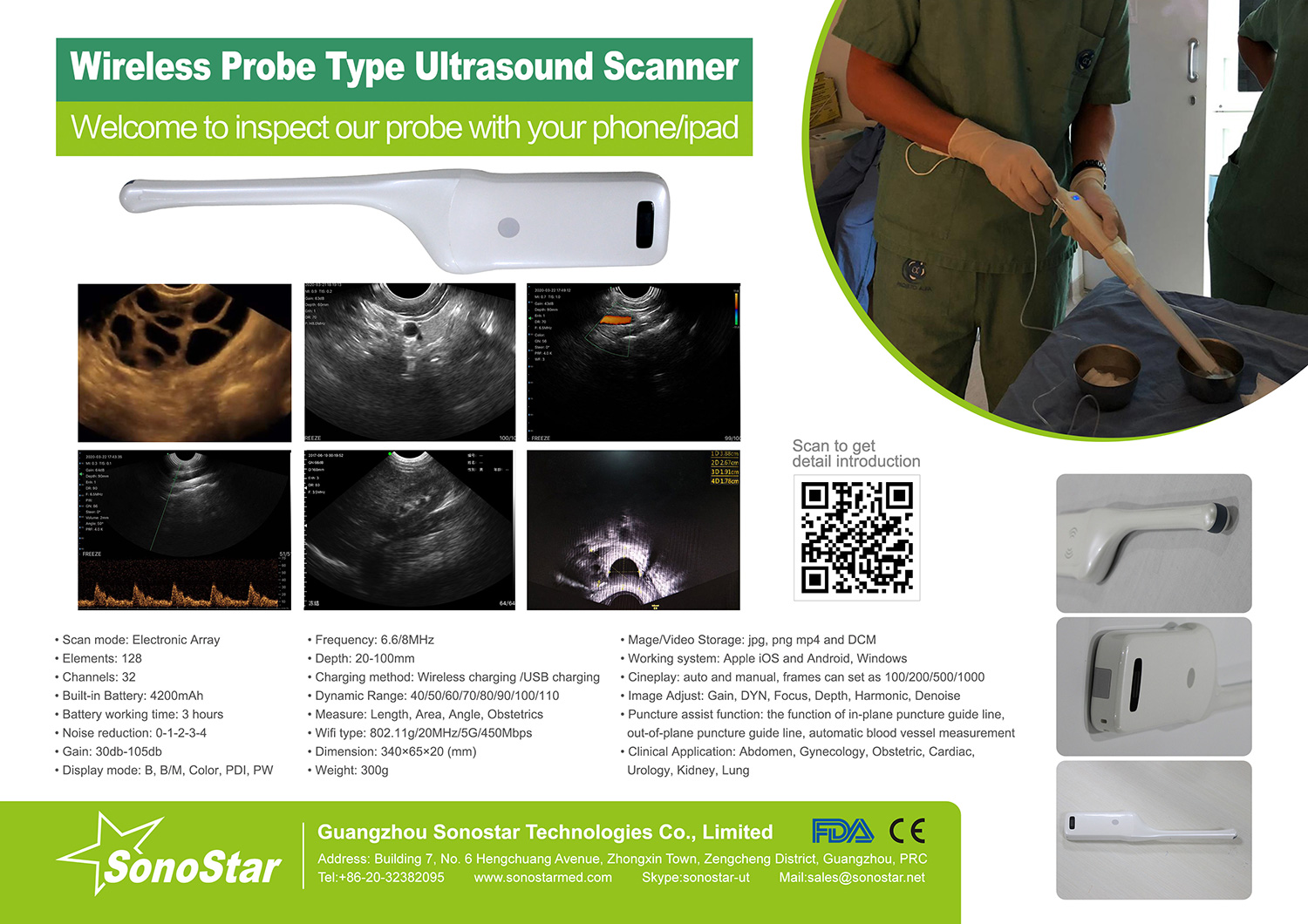

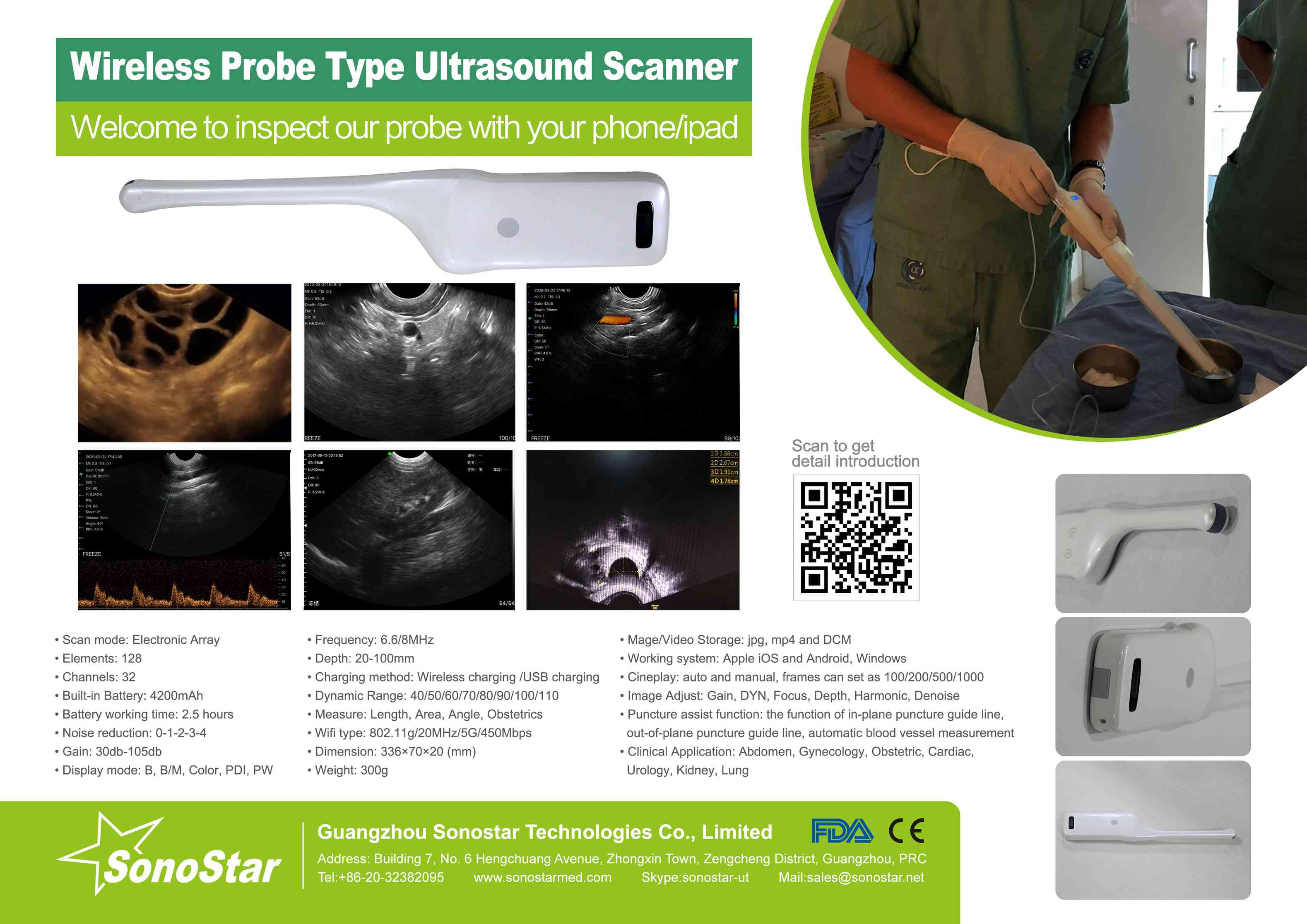

Specifications:

-Elements: 128

-Channels: 32

-Image mode: B, B/M, color, PW, PDI

-Frequency: 6.6/8MHz

-Scan Angle: 13°

-Scan Depth: 20-100mm

-Image Adjust: Gain, DYN, Focus, Depth, Harmonic, Denoise

-Cineplay: auto and manual, frames can set as 100/200/500/1000

-Measure: Length, Area, Angle, Obstetrics

-Image frame rate: 18 frames/second

-Image save format: jpg, mp4, png and DCM

-Battery working time:3 hour ,Use the data line for sustainable battery life

-Noise reduction: 0-1-2-3-4

-Dynamic Range: 40/50/60/70/80/90/100/110

-Puncture assist function: in-plane puncture guide line function, out-of-plane puncture guide function

-Charge: by USB, or optional wireless charger

-Gain: 30db-105db

-Size/Weight: 336mmx70mmx20mm, 300g

-Wifi type: 802.11g/20MHz/5G/450Mbps

-Working system: Android/iOS/Windows



>>Catalog Download
