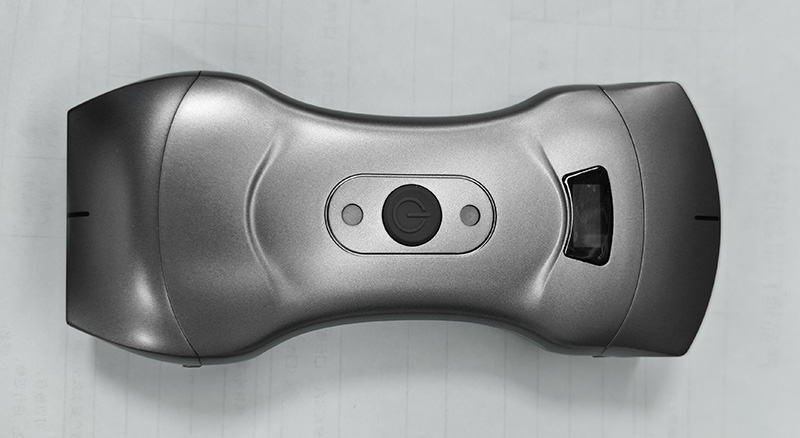

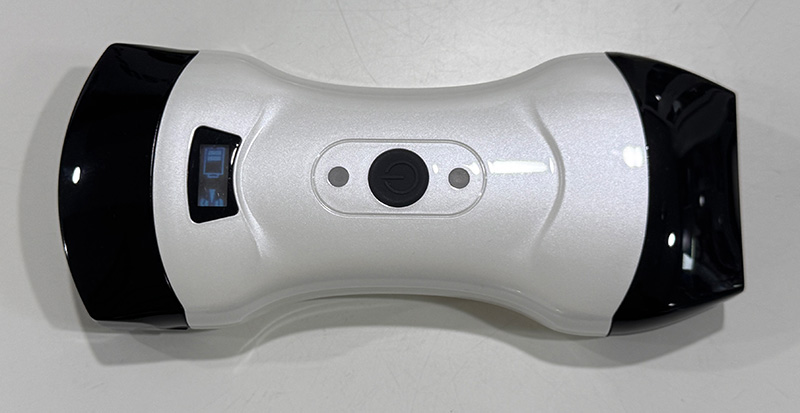

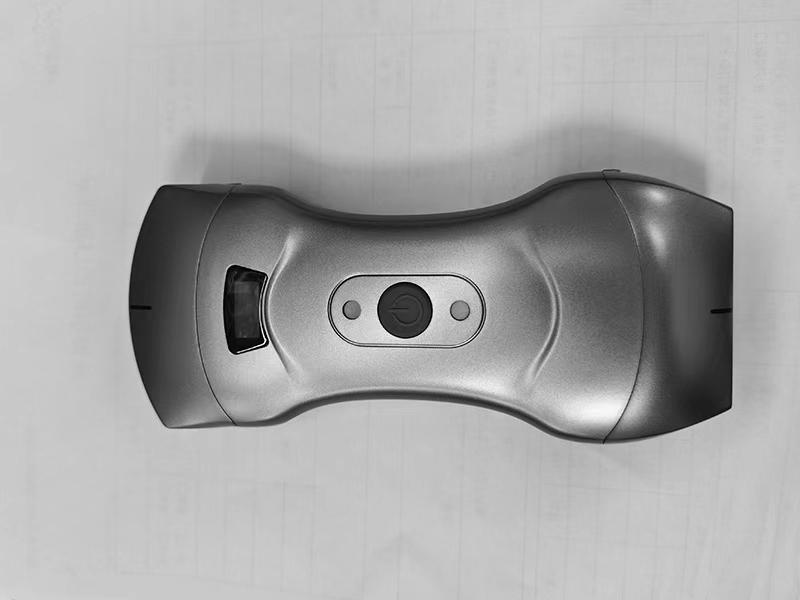

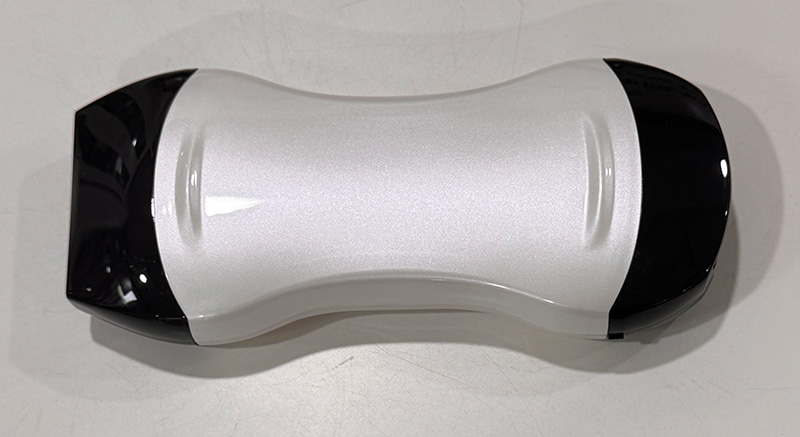

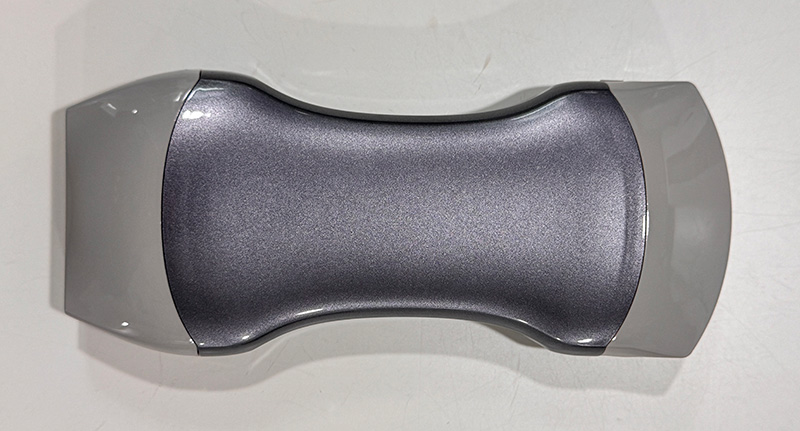

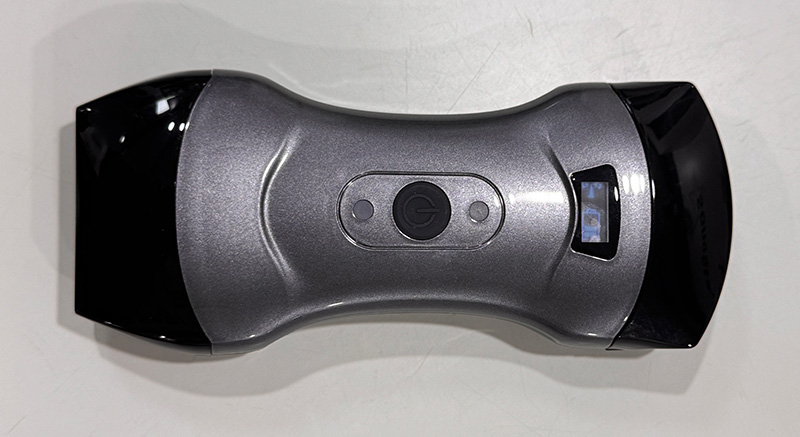

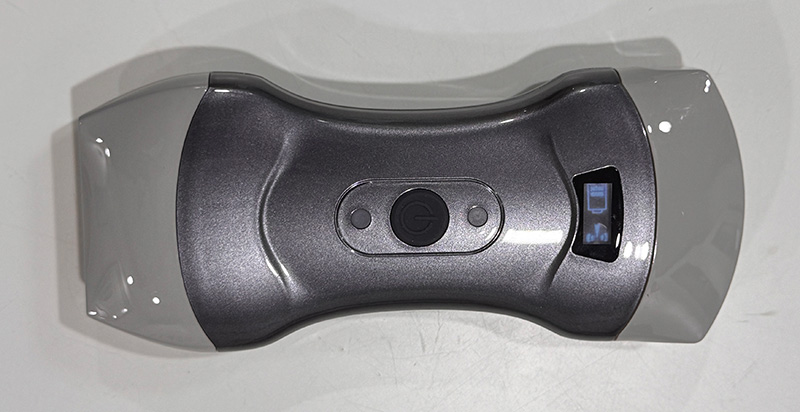

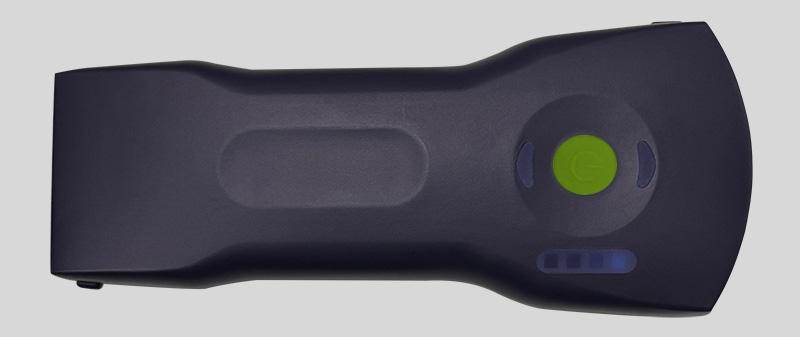

有白、灰黑、藏蓝等颜色可选，也可根据客户定制颜色

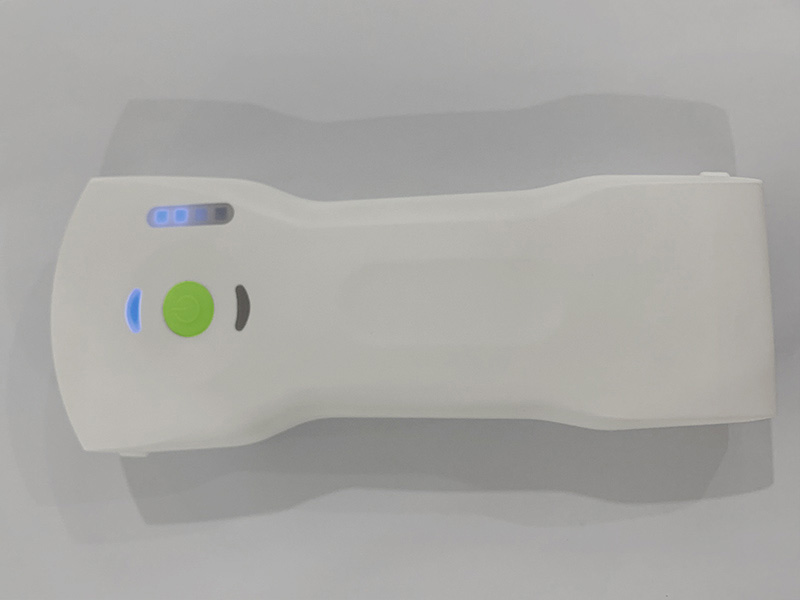

Specifications:

• Frequency: R60 Convex/Phasedarray probe 3.2MHz/5MHz,

  L40 Linear probe 7.5MHz/10.0MHz

• Elements: 192

• Channels: 32

• Display Depth: Convex 90/160/220/305mm, Linear 20/40/60/80mm

• Scan angle and width: convex 60°, Phasedarray 80°,  linear 40mm

• Image Adjust: Gain, DYN, Focus, Depth, Harmonic, Denoise

• Puncture assist function: the function of in-plane puncture guide line,

  out-of-plane puncture guide line, automatic blood vessel measurement,

  and the enhancement function of needle point development.

• Noise reduction: 0-1-2-3-4

• Gain: 30db-105db

• Dynamic Range: 40/50/60/70/80/90/100/110

• Cineplay: auto and manual, frames can set as 100/200/500/1000

• Measure: Length, Area, Angle, Obstetrics

• Battery working time: 3 hours

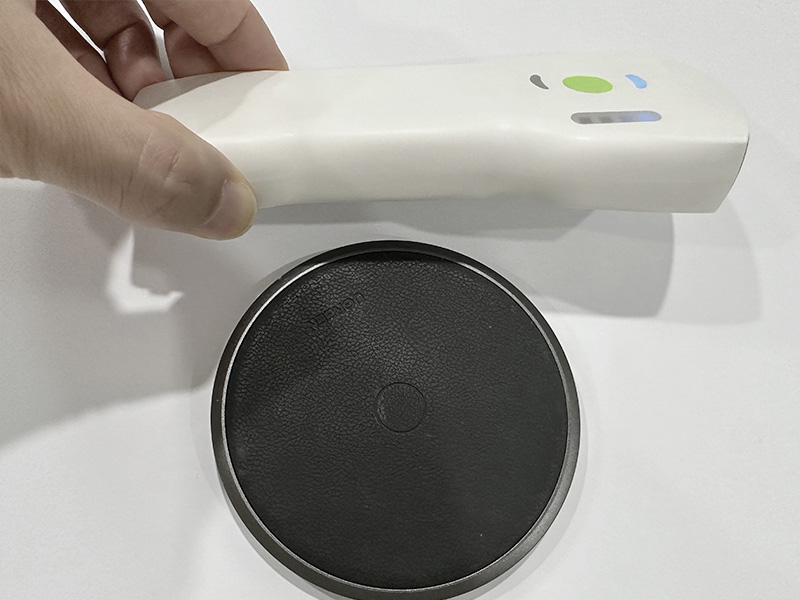

• Charge: by wireless charger, 2 hours

• Dimension: 156×60×20mm

• Weight: 230g

• Wifi type: 802.11g/20MHz/5G/450Mbps

• Working system: Apple iOS and Android, Windows
