• Scan mode: Electronic Array

• Elements/Channels: 96, 32

• Scan angle and width: 45°, 28mm

• Built-in Battery: 1350mAh

• Battery working time: 1 hours

• Noise reduction: 0-1-2-3-4

• Gain: 30db-105db

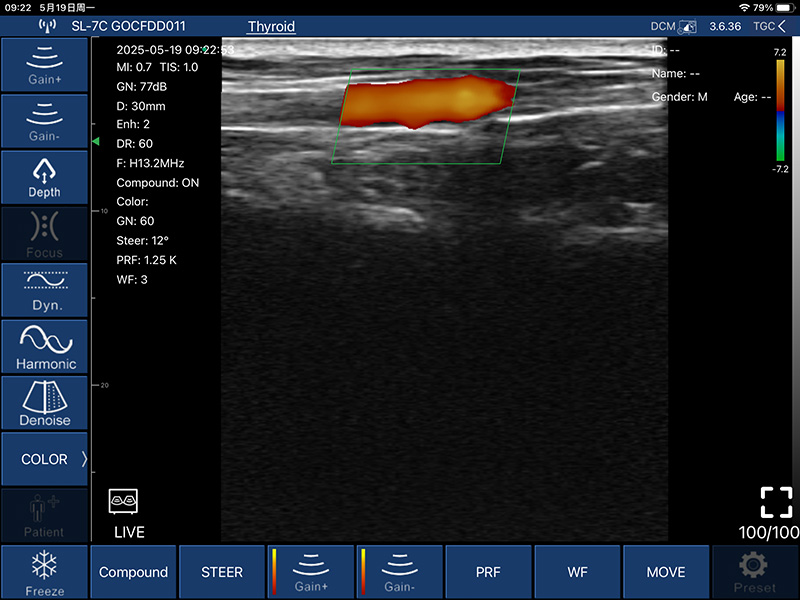

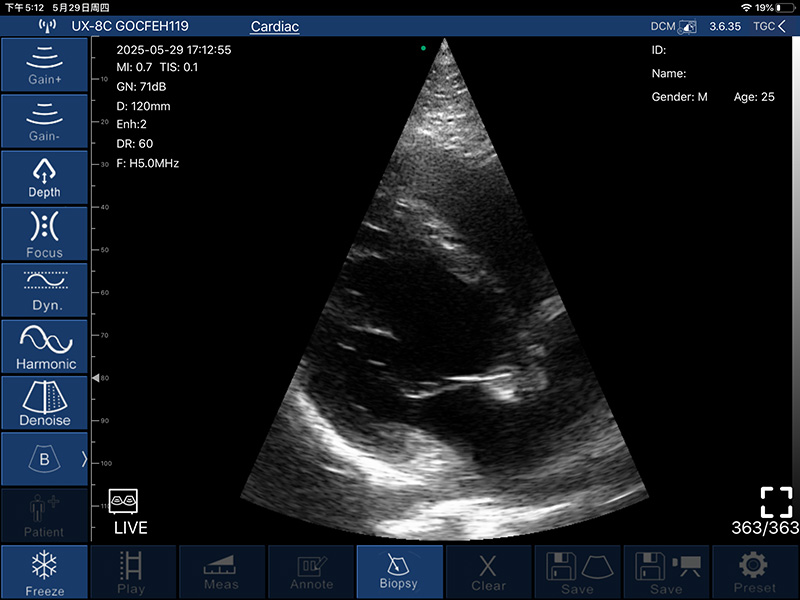

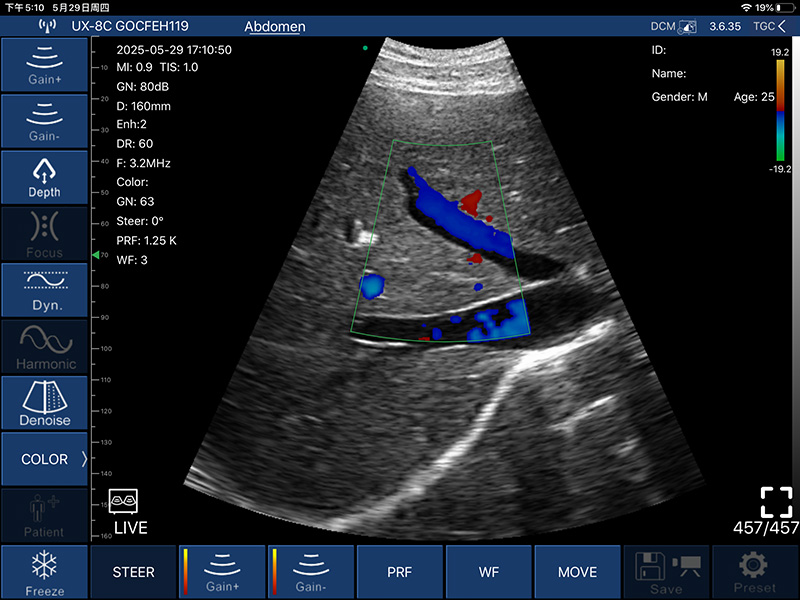

• Display mode: B, B/M, Color, PDI, PW

• Frequency: Convex3.2/5.0MHz, Linear7.5/10MHz

• Depth: Convex90-305mm, Linear20-100mm

• Charging method: Wireless charging /USB charging

• Dynamic Range: 40/50/60/70/80/90/100/110

• Measure: Length, Area, Angle, Obstetrics

• Wifi type: 802.11g/20MHz/5G/450Mbps

• Dimension/Weight: 110×60×20 (mm), 140g

• Mage/Video Storage: jpg, png mp4 and DCM

• Working system: Apple iOS and Android, Windows

• Cineplay: auto and manual, frames can set as 100/200/500/1000

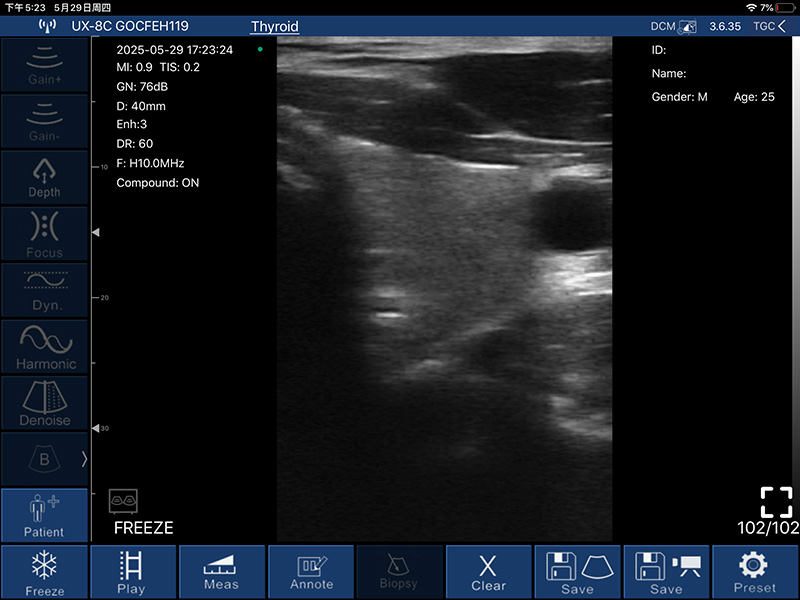

• Image Adjust: Gain, DYN, Focus, Depth, Harmonic, Denoise

• Puncture assist function: the function of in-plane puncture guide line,

  out-of-plane puncture guide line, automatic blood vessel measurement

• Clinical Application: Abdomen, Gynecology, Obstetric, Cardiac, Urology, Kidney, Lung, Thyroid, Small Parts, Pediatrics, Vascular, VesselFlow, carotid, Breast, MSK, Nerve, Aesthetics

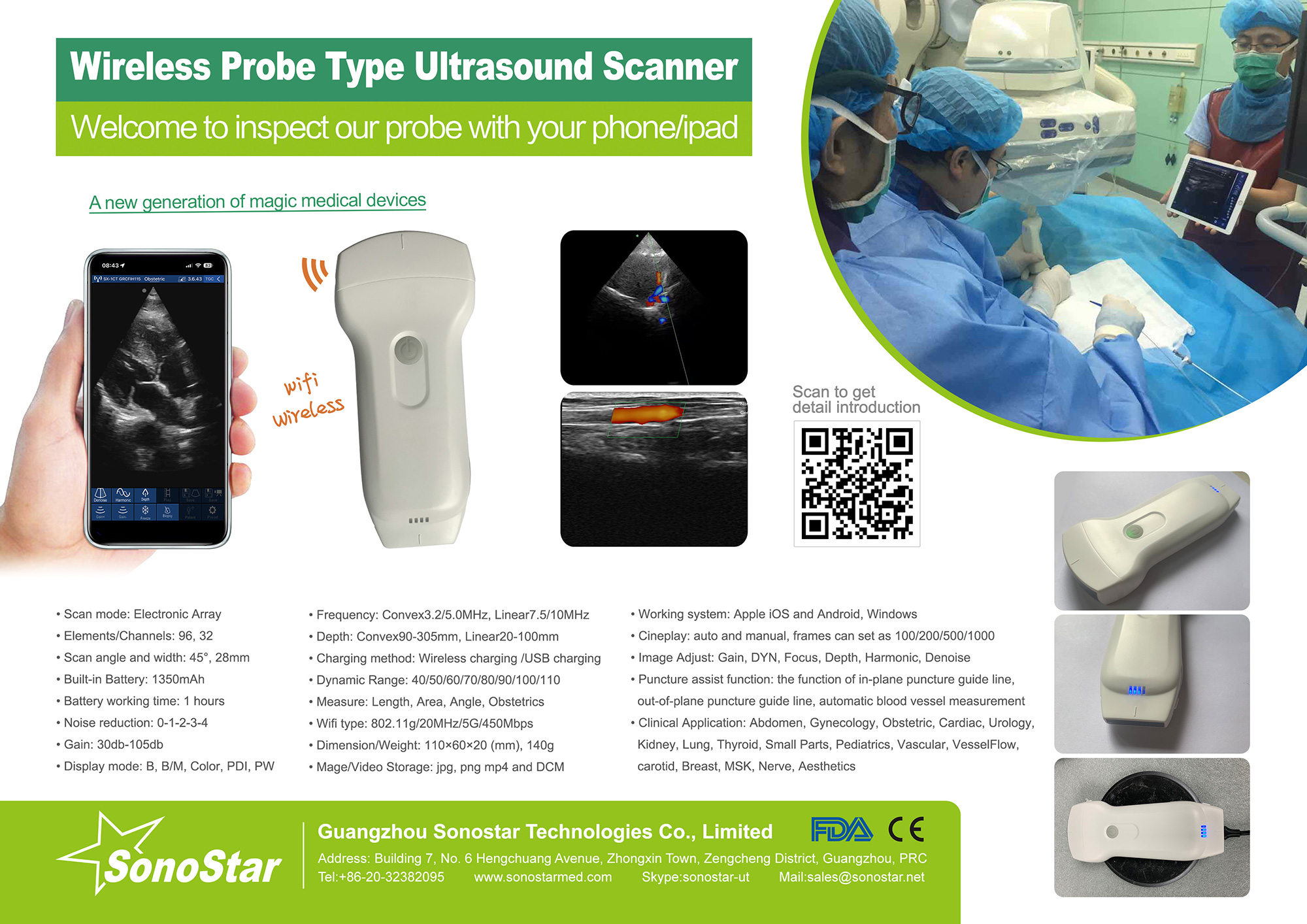

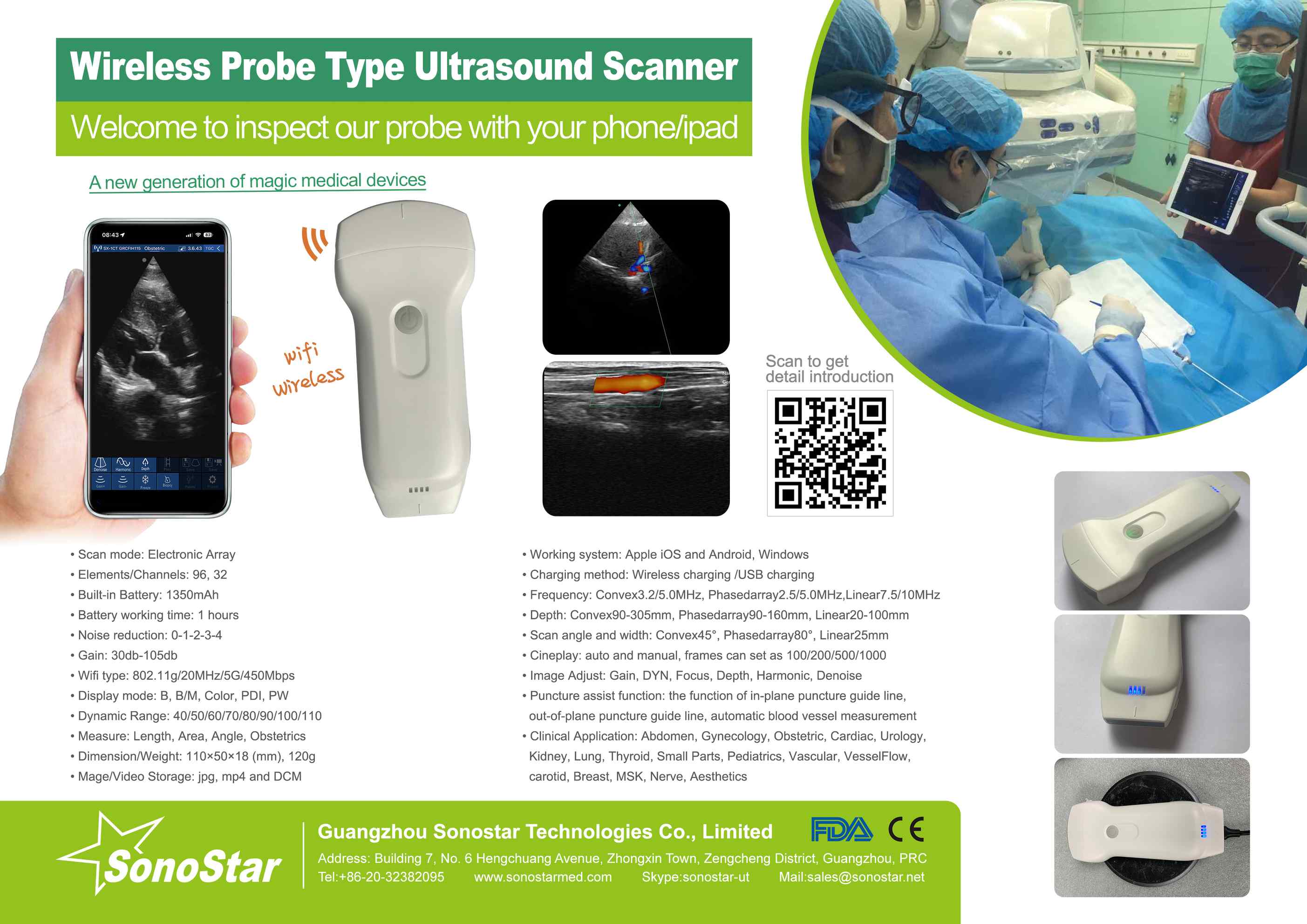

>>Catalog Download
