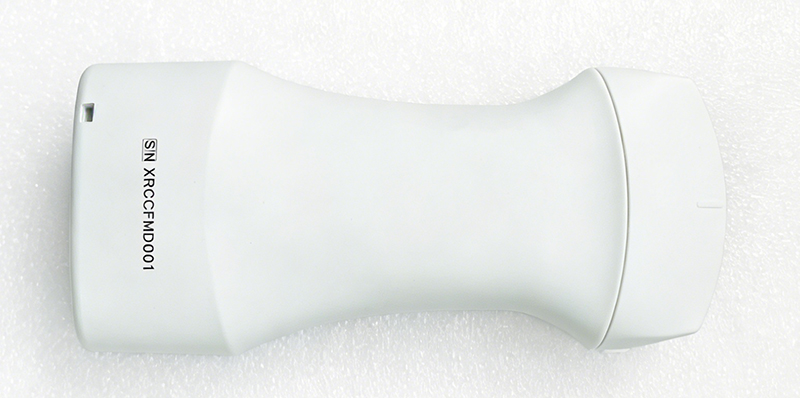

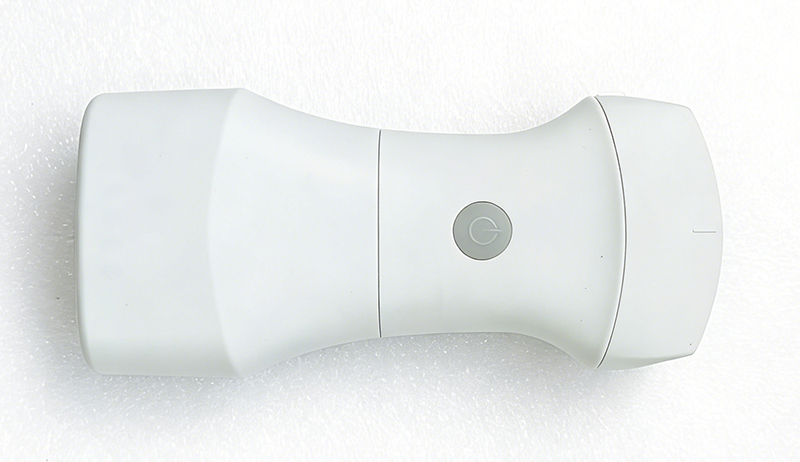

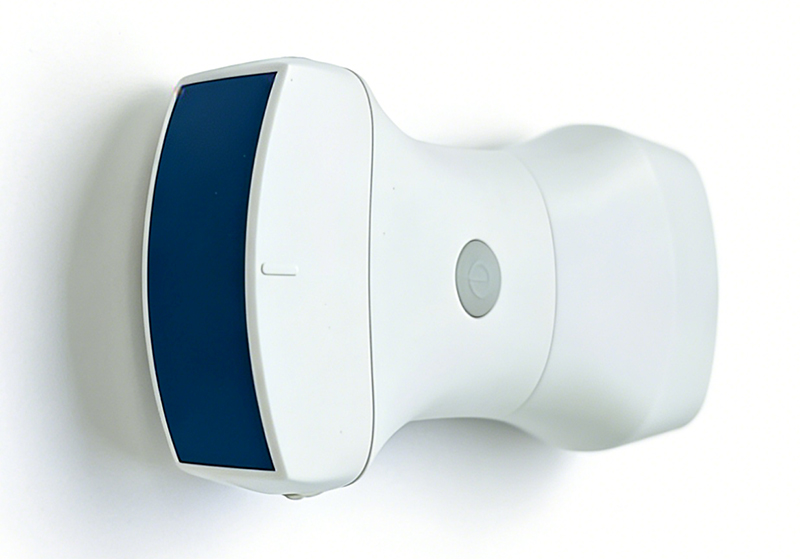

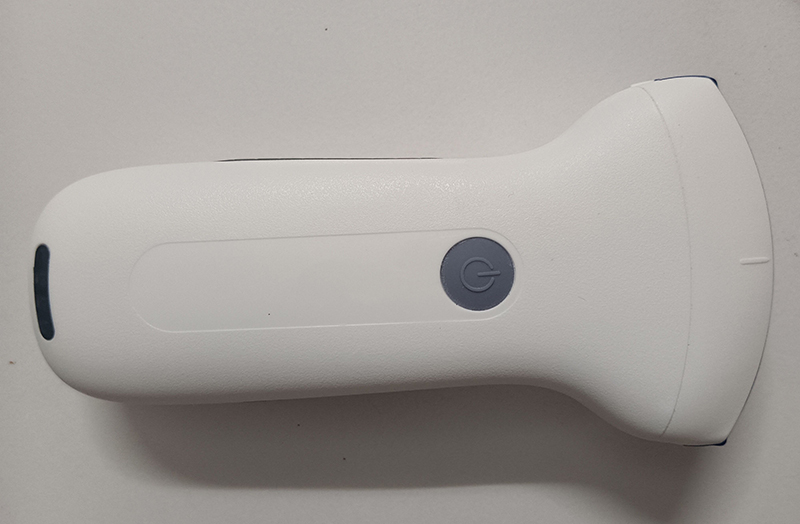

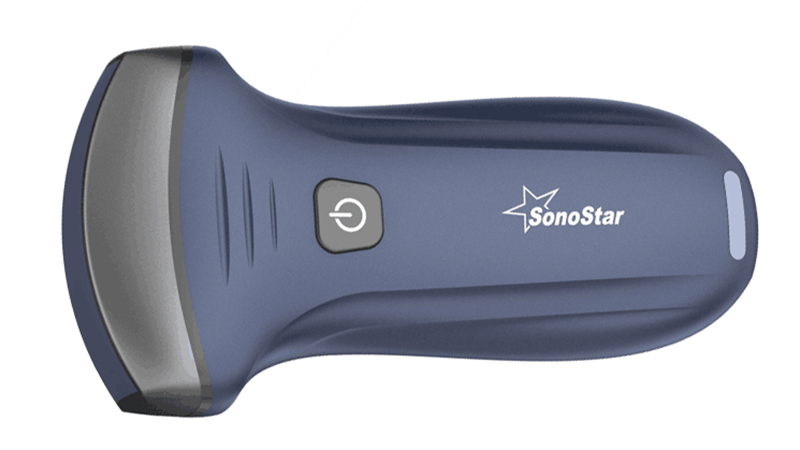

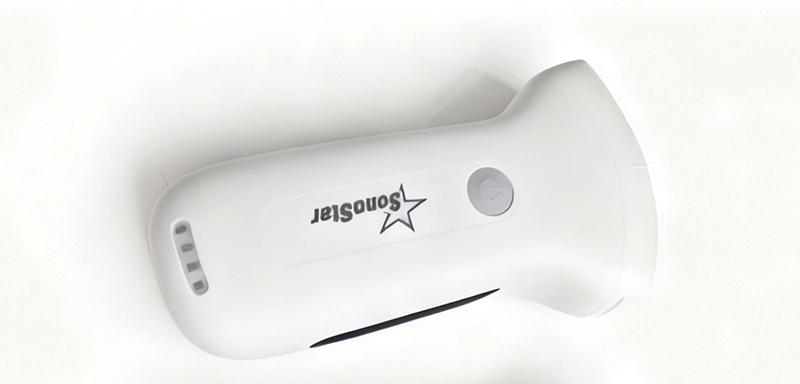

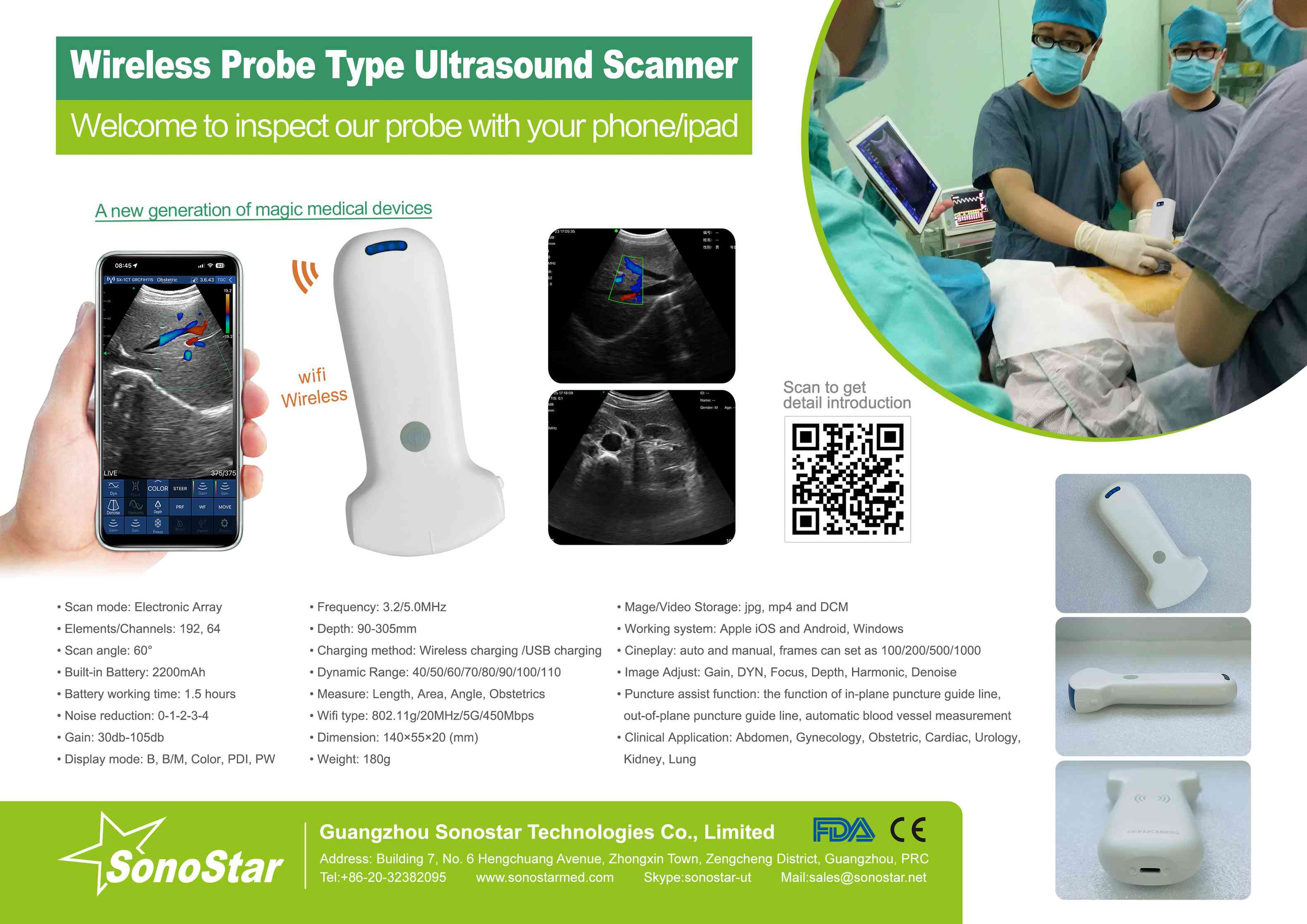

8C

DA8C (Pro Series, with mono crystal transducer, larger battery version) (VIP Exclusive)

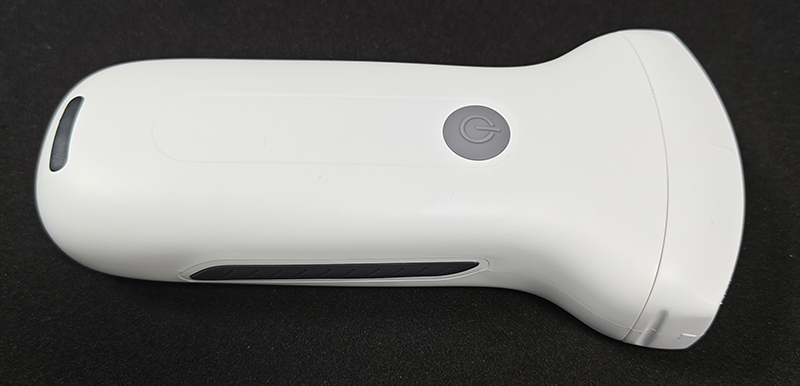

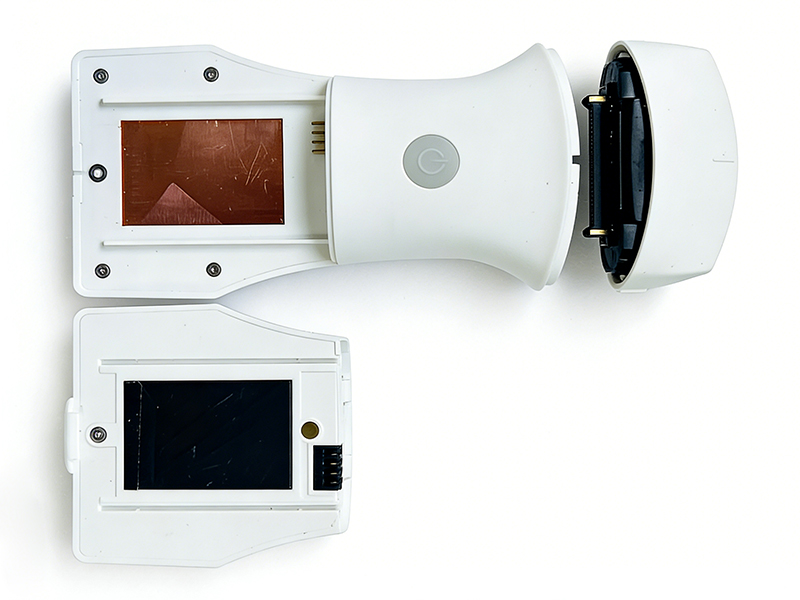

KC8C (Max3 series, replaceable battery)

• Scan mode: Electronic Array  Convex scanning
• Frequency:  Convex probe 3.2/5.0MHz
• Elements: 192 elements
• Channels: 64 channels
• Scanning Depth: Convex 90-305mm, adjustable
• Scan angle: R60
• Screen: iOS/Android/Windows screen
• Supporting system: iOS, Android, Windows
• Display mode: B, B/M, Color, PDI, PW
•  Image Adjustment: gain, focus, reverse pulse harmonics, noise reduction
•  Puncture Auxiliary Function: In-Plane puncture guide, Out-Plane puncture guide, automatic vascular measurement function
• Image gray scale: 256 level
• Noise reduction: 0-1-2-3-4
• Gain: 30db-105db
• Dynamic Range: 40/50/60/70/80/90/100/110
• Image/Video Storage: jpg, MP4, png, DCM, store on mobile phones, Tablet PC
• Measure: distance, area, obstetrics and other
• Power: by built-in lithium battery, 2200mAh, wireless charging can extend the working time indefinitely
• Playback : manual and automatic, playback frames to be 100/200/500/1000
• WiFi Type : 802.11n/2.4G/5G dual-band 450Mbps
• Battery working time: regular version 1.5 hours, lager battery version 3 hours

• Size: 140mm×60mm×20mm
• Net Weight: 180 gram
